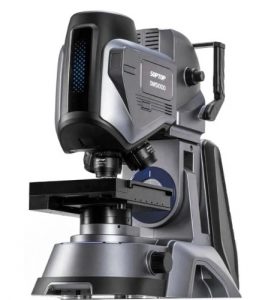

Overview
The DMS1000 is modelled after very popular microscope such as VHX-7000 and VHX-X1 system. Packed with all the feature that digital microscope should have. Such as 3D/Super-depth imaging, image stitching, Z height measurement etc. The DMS1000 will change your view on what digital microscope is.

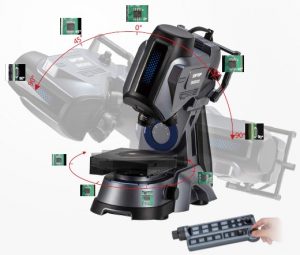

Automatic Frame Hovering and Angle Control
Utilizing clutch control technology, the frame achieves automatic hovering at any angle upon releasing the button.
● The frame supports a rotation angle range from -90° to 90° , enabling panoramic observation without tilting the sample.
● Built-in high-precision angle sensors ensure precise and reliable rotation angles.

Large Travel, Large Rotation Angle StageControl
● In rotation priority mode, the stage has a movement range of 50mm x 50mm and can achieve ±90 ° rotation angles. It is equipped with built-in angle sensors so that even when rotating, the platform can still move in the
direction seen in the image.
● In travel priority mode, the stage expands to a movement range of 100mm x 100mm to meet the observation needs of larger samples.

Precision and Adjustment of Electric Z-axis
Optional attachment of grating ruler to enhance the measurement accuracy of the Z-axis. The coarse and fine handwheels adopt a stepless speed regulation scheme, making the adjustment of the Z-axis
smoother and more comfortable, enhancing the operational experience.

Integrated Controller Operation
The controller contains various shortcut keys, enabling efficient and quick control of the microscope body and software.
Supported functions include: navigation, magnification switching, illumination mode selection, platform electric movement, automatic focusing, real-time depth synthesis, 2D/3D image stitching, glare elimination, high dynamic range (HDR) imaging, shake correction, photography, and data saving, etc.

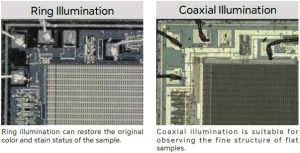

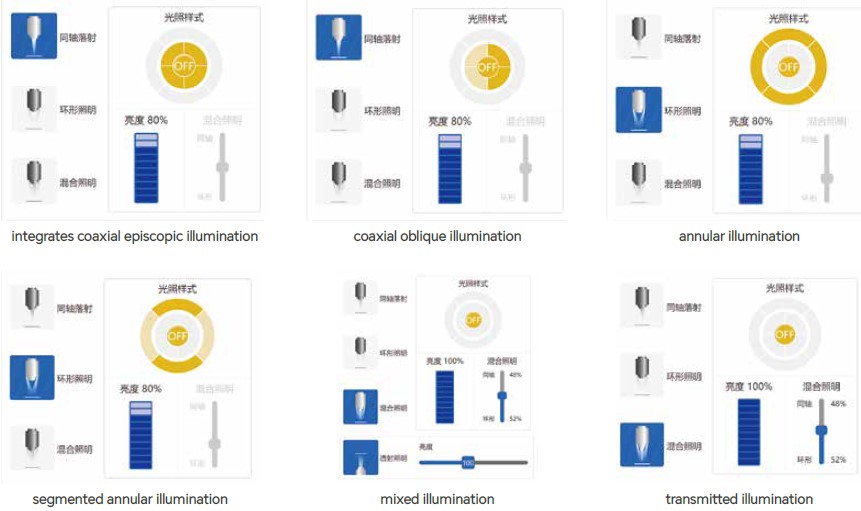

Integrated Multiple Illumination Modes
The D7000 integrates coaxial episcopic illumination, coaxial oblique illumination, annular illumination, segmented annular illumination, mixed illumination, and transmitted illumination. It can achieve bright field, dark
field, MIX, polarized light, DIC, and other observation modes, providing flexible illumination solutions for observing samples with different attributes.
The unique four-zone illumination design allows users to illuminate one or more areas as needed to obtain the best observation results.

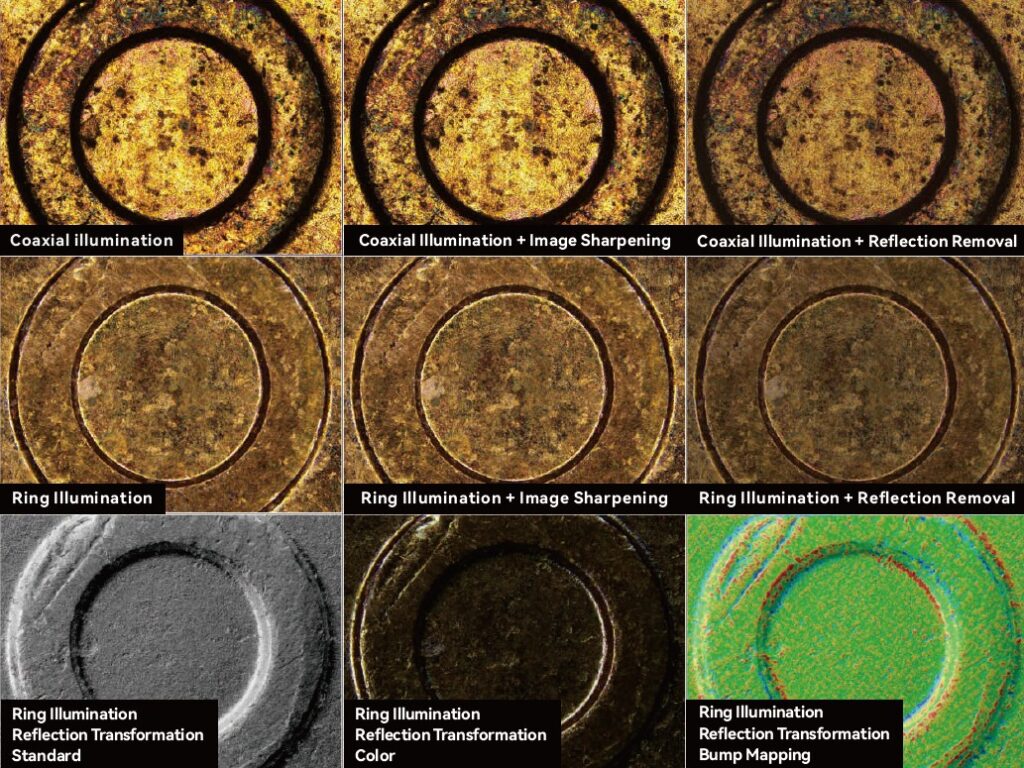

One Touch Optimal Imaging

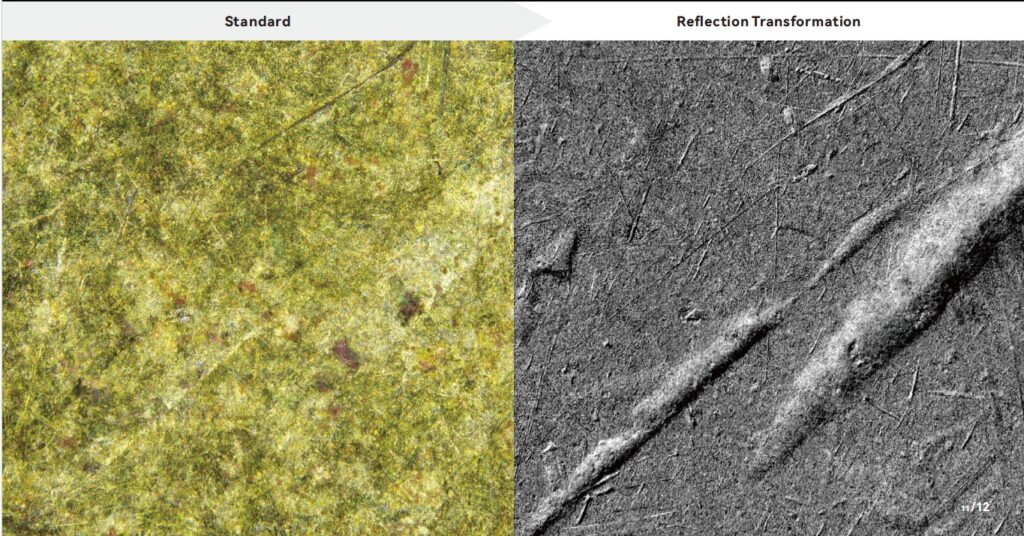

Clear Presentation of Surface Texture
The system seamlessly fuses multi-angle illumination with advanced algorithmic processing to reveal sample details at a click. Even the finest surface topography becomes clearly visible, fully leveraging the performance of high-resolution objectives to deliver exceptional image clarity.


Reflection removal
Image Processing – Insight into details by removing reflection

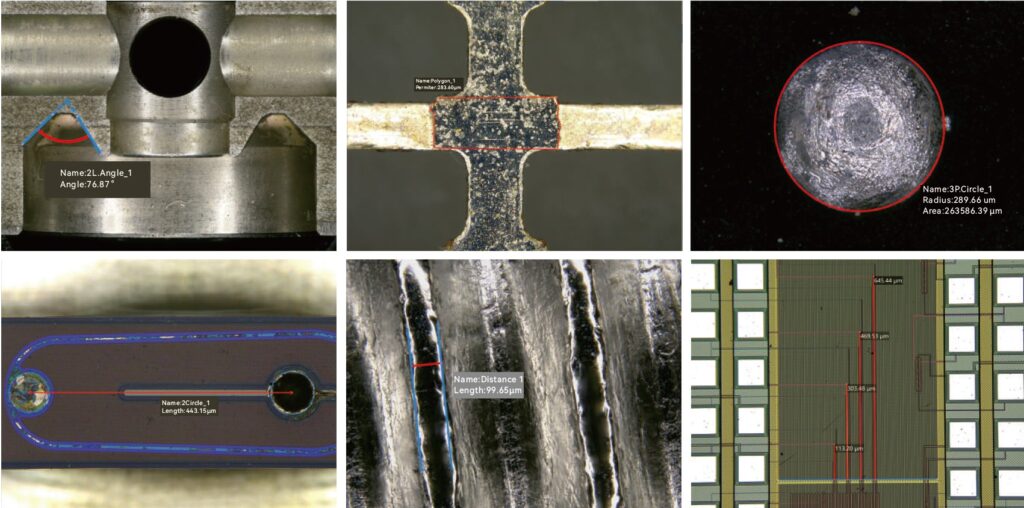

2D Measurement
With simple mouse operations, you can perform various measurements in real-time on the screen, such as between two points, point to line, angle, diameter, parallel lines, area, and more. After exporting the data to Excel, users can further customize (font size, line color, unit display) to optimize the measurement experience.

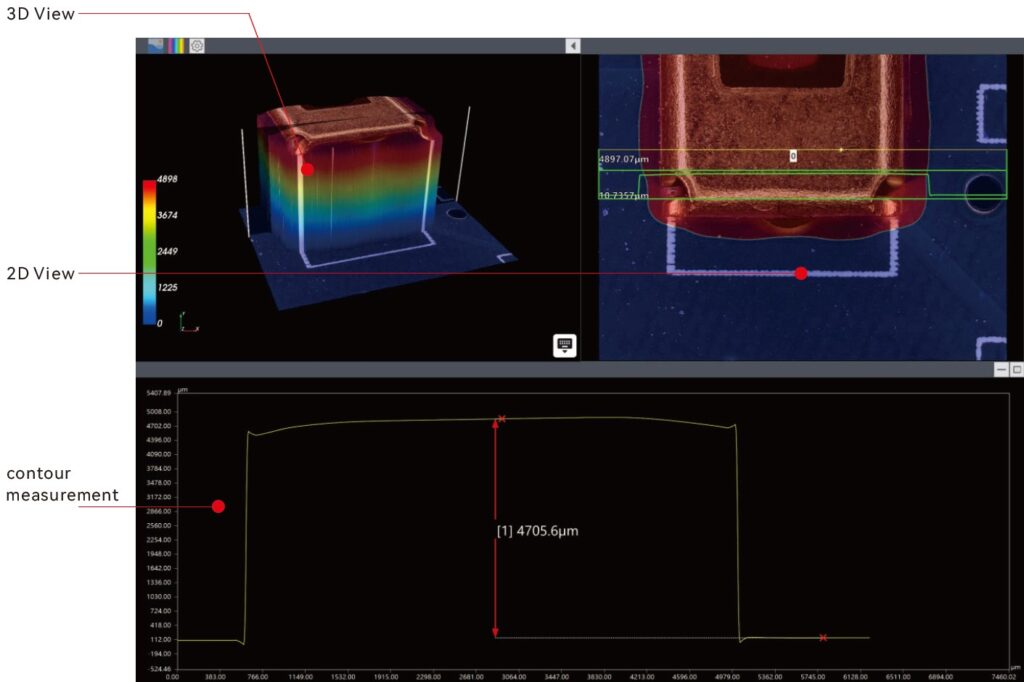

3D Measurement
Supports multiple contour measurement tools. One-touch tilt correction ensures fast, precise height and contour measurements.

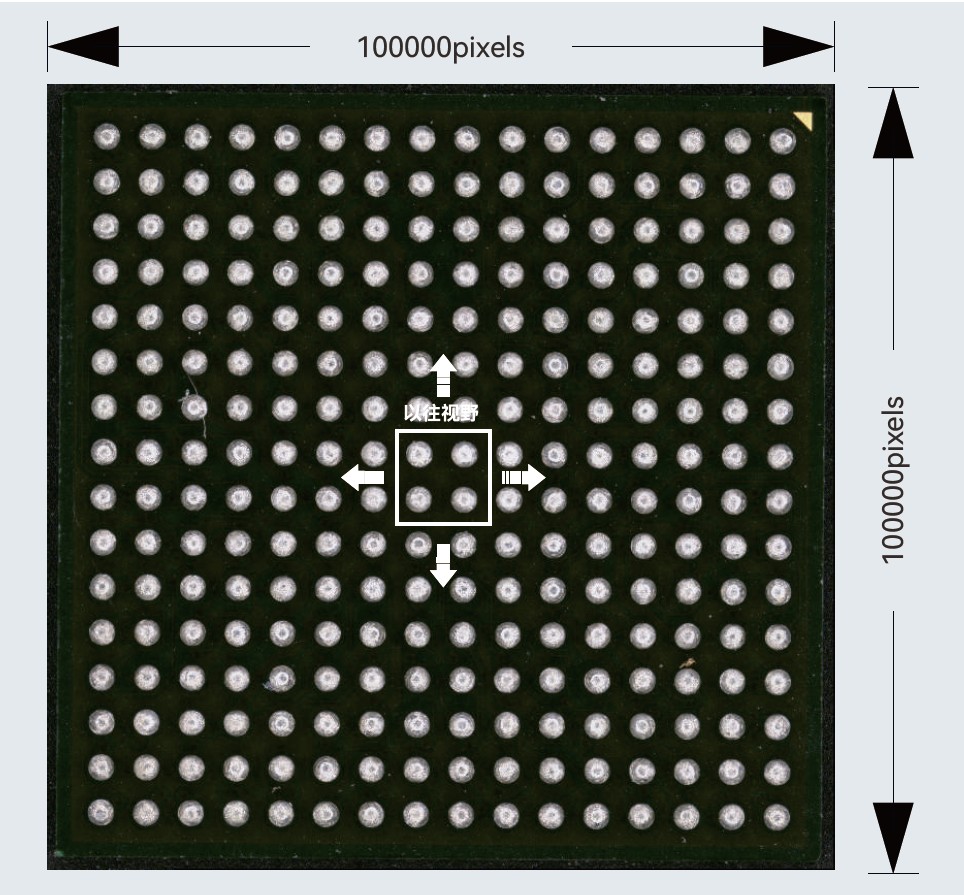

Image Stitching
Press the stitching button to automatically merge images. Stitched images can serve as navigation maps, supporting up to 100,000 × 100,000 pixels

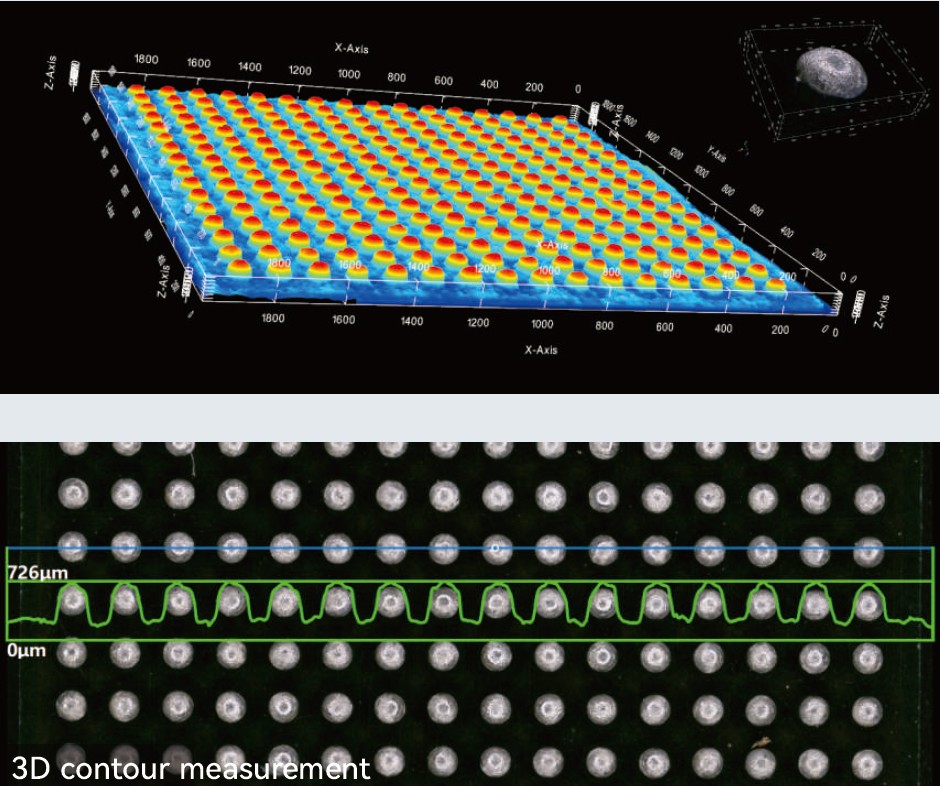

3D Image Stitching
Simultaneously captures 3D data while moving the stage, enabling large-scale 3D image stitching.

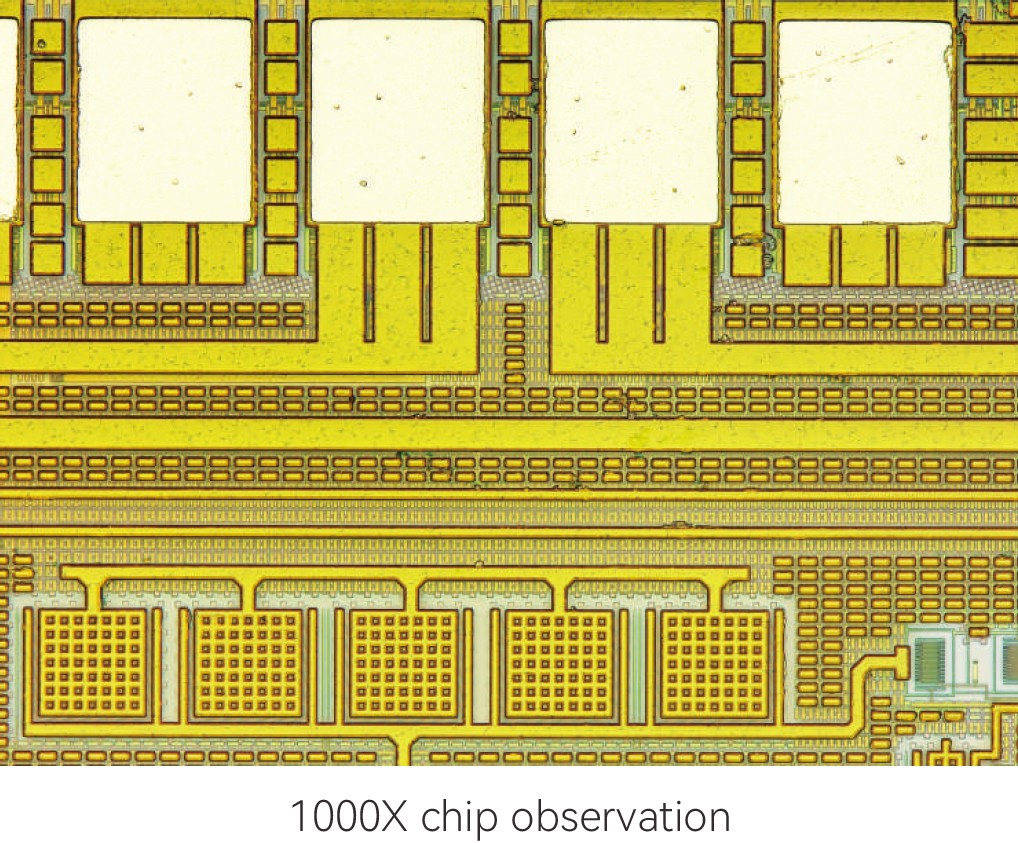

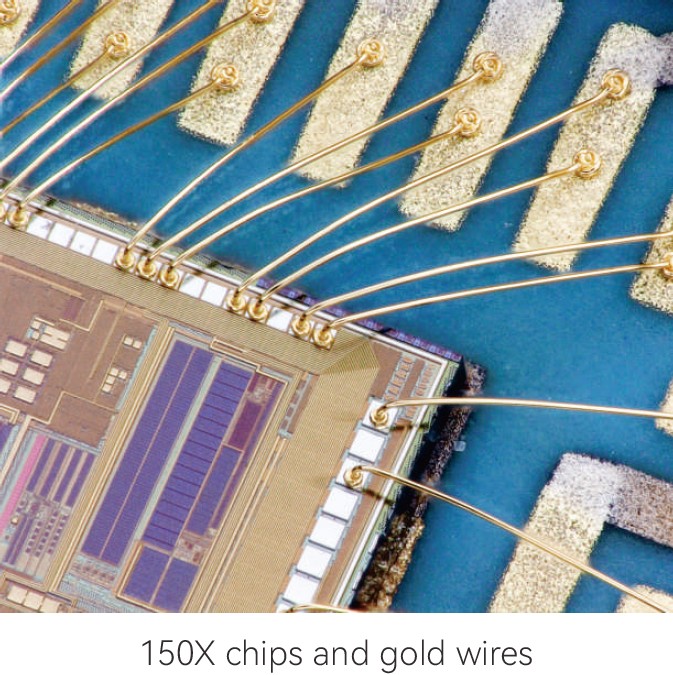

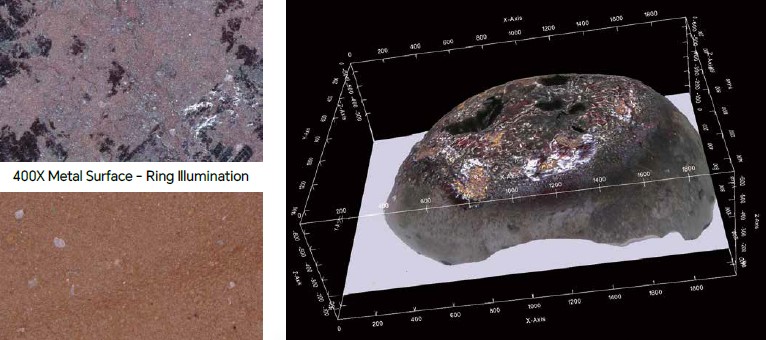

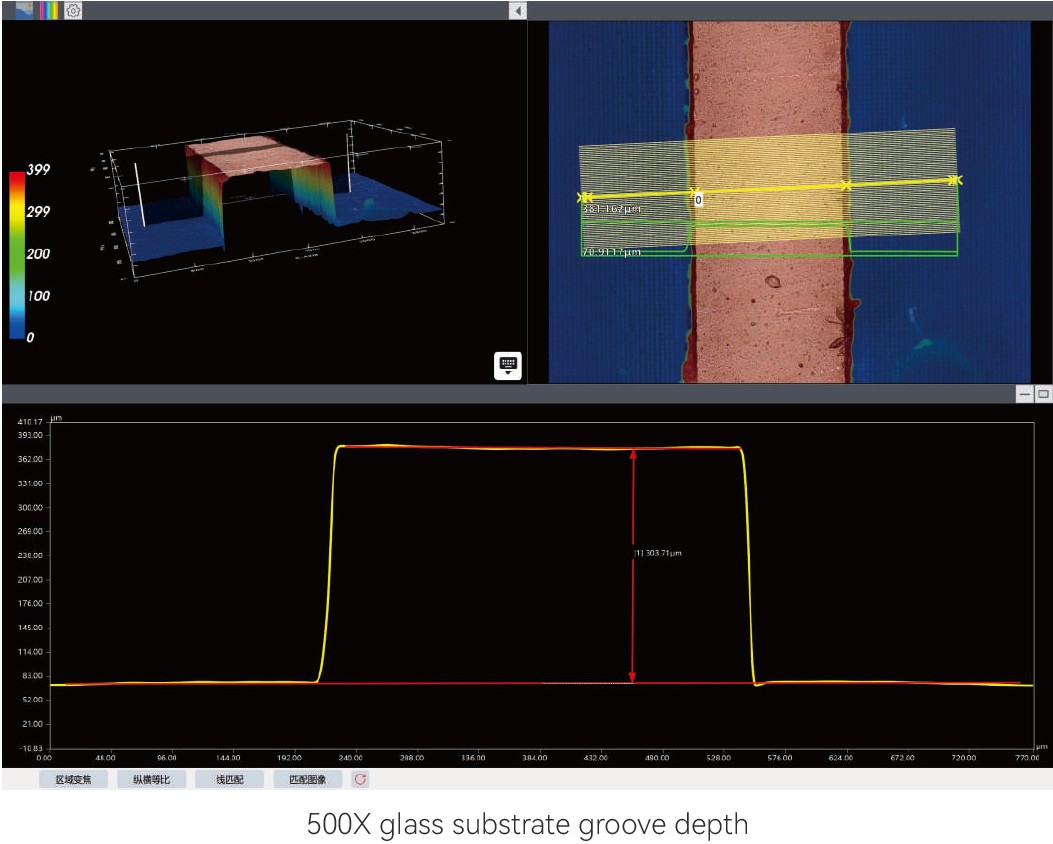

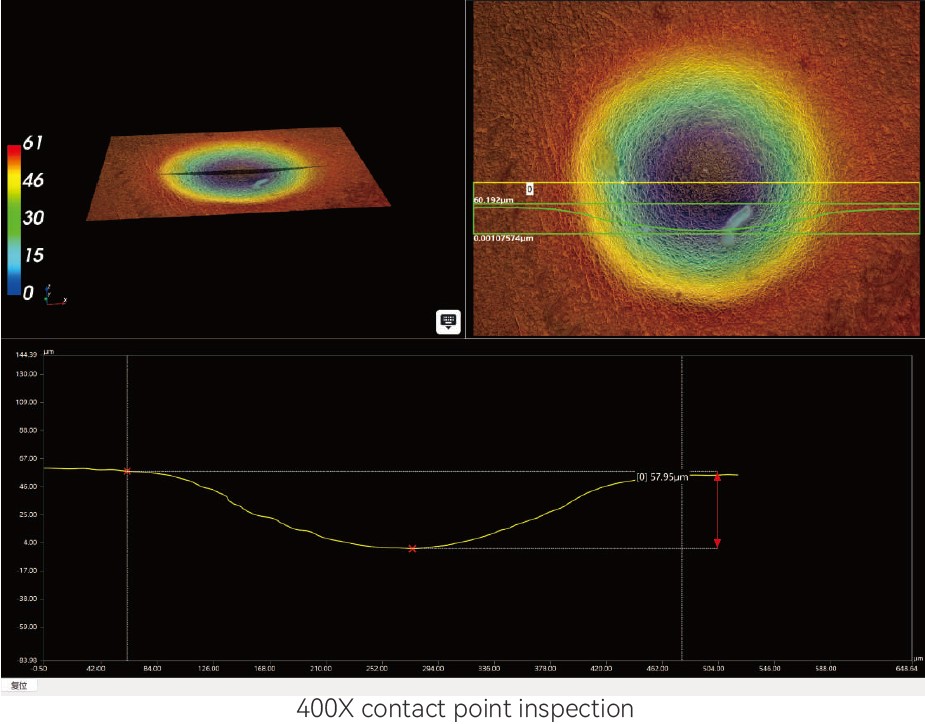

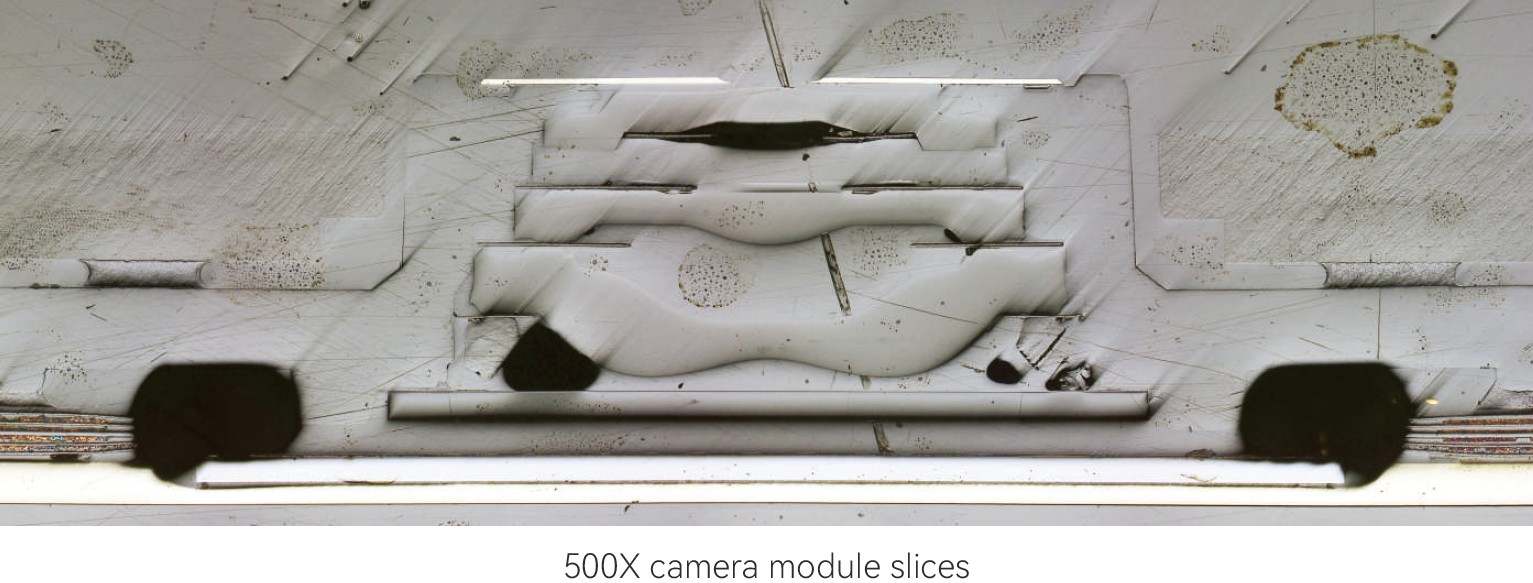

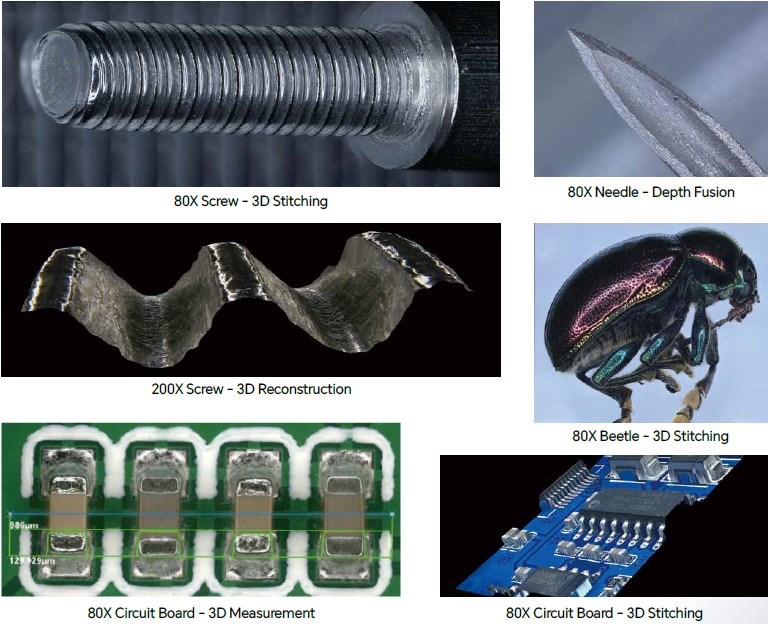

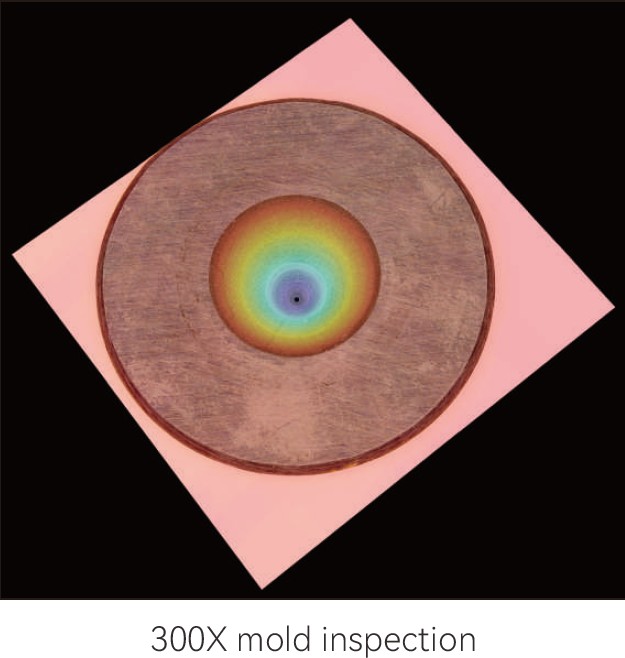

Application Examples

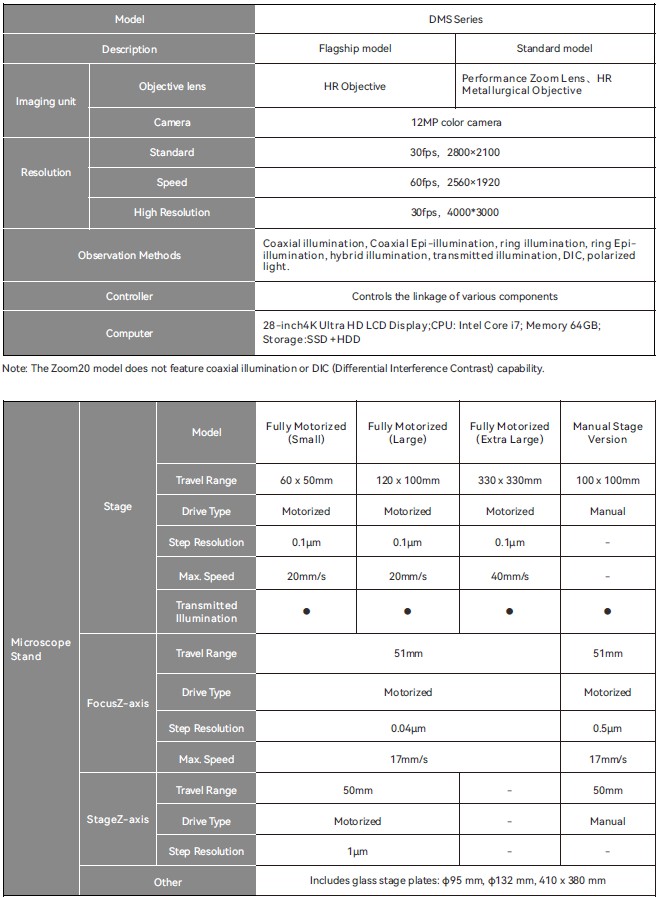

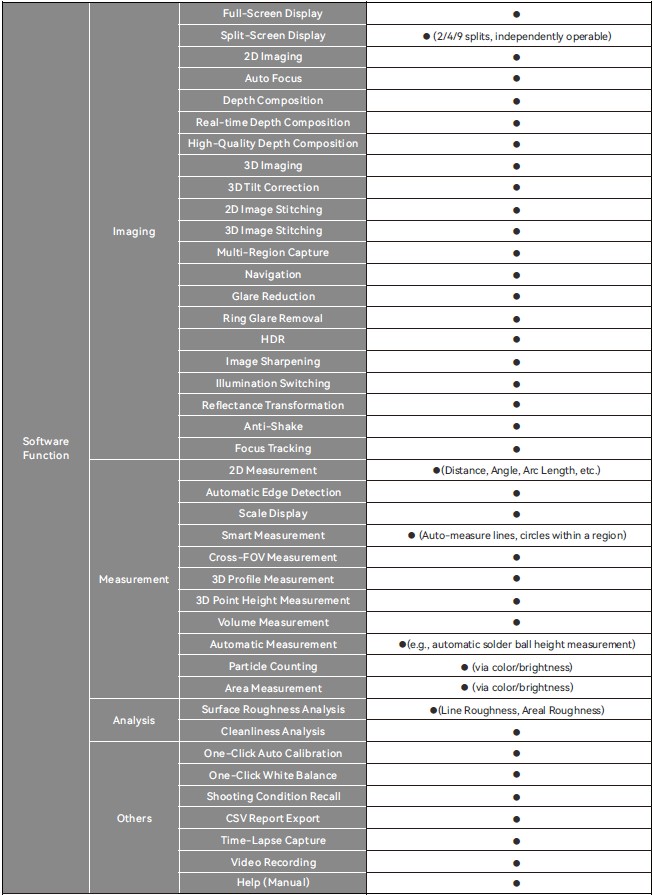

Specifications
